Request datasheetPower GaN transistor
10 W GaN packaged power transistor for base station applications.
Features and benefits
- Excellent digital pre-distortion capability
- High efficiency
- Designed for broadband operation
- Lower output capacitance for improved performance in applications
- For RoHS compliance see the product details on the Ampleon website
Applications
- RF power amplifier for base stations and multi carrier applications in the 1800 MHz to 5000 MHz frequency range
Parametrics
| Symbol | Parameter | Conditions | Min | Typ/Nom | Max | Unit |
|---|---|---|---|---|---|---|
| frange | frequency range | 1800 | 5000 | MHz | ||
| PL(5dB) | nominal output power at 5 dB gain compression | 10 | W | |||
| Test signal: Pulsed CW | ||||||
| VDS | drain-source voltage | [0] | 50 | V | ||
| Gp | power gain | PL = 27.5 dBm [0] | 14.3 | 15.8 | dB | |
| ηD | drain efficiency | PL = 27.5 dBm [0] | 9 | 13 | % | |
Package / Packing
| Type number | Package | Outline version | Reflow-/Wave soldering |
Packing | Product status | Marking |
Orderable part number, (Ordering code (12NC)) |
|---|---|---|---|---|---|---|---|
| C5H2350N10 | DFN-4.5x4-6-1 (DFN-4.5x4-6-1) |
dfn-4.5x4-6-1_po | TR13; 3000-fold; 12 mm; dry pack | Active | Standard Marking |
C5H2350N10Z (9349 606 91515) |
|
| TR7; 1000-fold; 12 mm; dry pack | Active | Standard Marking |
C5H2350N10X (9349 606 91525) |

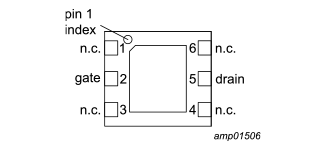

Pinning info
| Pin | Symbol | Description | Simplified outline | Graphic symbol |
|---|---|---|---|---|
| 1 | n.c. | not connected |
|
|
| 2 | gate | gate | ||
| 3 | n.c. | not connected | ||
| 4 | n.c. | not connected | ||
| 5 | drain | drain | ||
| 6 | n.c. | not connected |
