LDMOS 3-stage integrated Doherty MMIC

The BLM10D3740-35AB is a 3-stage fully integrated asymmetrical Doherty MMIC solution using Ampleon’s state of the art LDMOS technology. The carrier and peaking device, input splitter, output combiner and pre-match are integrated in a single package. This multiband device is perfectly suited as a final stage for small cells and massive MIMO applications in the frequency range from 3700 MHz to 4000 MHz. Available in PQFN outline.

Features and benefits

  • Integrated input splitter
  • Integrated output combiner
  • 30 Ω output impedance thanks to integrated pre-match
  • Very high efficiency thanks to asymmetry
  • Designed for wideband operation (frequency 3700 MHz to 4000 MHz)
  • Independent control of carrier and peaking bias
  • Integrated ESD protection
  • Source impedance 50 Ω; high power gain
  • For RoHS compliance see the product details on the Ampleon website

Applications

  • RF power MMIC for multi-carrier and multi-standard 5G base stations in the 3700 MHz to 4000 MHz frequency range

Downloads

Datasheet
All application notes
All documentation

All documents

Design tool

RF Power Lifetime Calculator

Transistor:
BLM10D3740-35AB

LDMOS 3-stage integrated Doherty MMIC

°C

Parametrics

Symbol Parameter Conditions Min Typ/Nom Max Unit
frange frequency range 3700 4000 MHz
PL(3dB) nominal output power at 3 dB gain compression 35 W
Test signal: 1-c pulsed CW
VDS drain-source voltage [0] [1] 28 V
Gp power gain PL = 5 W (37 dBm) [0] [1] 32.2 34.2 36.4 dB
ηD drain efficiency PL = PL(3dB) [0] [1] 41 47 %
ηD drain efficiency PL = 5 W (37 dBm) [0] [1] 34 41 %
RLin input return loss [0] [1] -10 dB

Package / Packing

Type number Package Outline version Reflow-/Wave
soldering
Packing Product status Marking Orderable part number,
(Ordering code (12NC))
BLM10D3740-35AB PQFN20
(SOT1462-1)
sot1462-1_po TR13, 500-fold, 16 mm, dry pack Active Standard Marking BLM10D3740-35ABZ
(9349 604 07515)

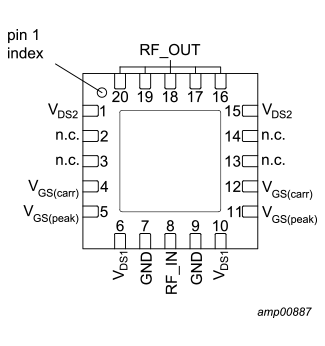

Pinning info

Pin Symbol Description Simplified outline Graphic symbol
1 VDS2 drain-source voltage of final stages
2 n.c. not connected
3 n.c. not connected
4 VGS(carr) gate-source voltage of carrier
5 VGS(peak) gate-source voltage of peaking
6 VDS1 drain-source voltage of driver stages
7 GND RF ground
8 RF_IN RF input
9 GND RF ground
10 VDS1 drain-source voltage of driver stages
11 VGS(peak) gate-source voltage of peaking
12 VGS(carr) gate-source voltage of carrier
13 n.c. not connected
14 n.c. not connected
15 VDS2 drain-source voltage of final stages
16 RF_OUT RF output
17 RF_OUT RF output
18 RF_OUT RF output
19 RF_OUT RF output
20 RF_OUT RF output
flange GND RF ground
