BLM9D2527-20AB
Download datasheet This product has been discontinued.Click here for discontinuation information.
BLM9D2527-20AB
Download datasheet
This product has been discontinued.
Click here for discontinuation information.
The replacement is: BLM9D2327-26B
The replacement is: BLM9D2327-26B
LDMOS 2-stage integrated Doherty MMIC
The BLM9D2527-20AB is a 2-stage fully integrated Doherty MMIC solution using Ampleon's state of the art GEN9 LDMOS technology. The carrier and peaking device, input splitter and output combiner are integrated in a single package. This multiband device is perfectly suited as a final device in massive MIMO or small cell applications in the frequency range from 2500 MHz to 2700 MHz. Available in PQFN outline.
Features and benefits
- Integrated input splitter
- Integrated output combiner
- Very high efficiency thanks to asymmetry
- Designed for broadband operation (frequency 2500 MHz to 2700 MHz)
- Independent control of carrier and peaking bias
- Integrated ESD protection
- Excellent thermal stability
- Source impedance 50 Ω; high power gain
- Compliant to Directive 2002/95/EC, regarding restriction of hazardous substances (RoHS)
Applications
- RF power MMIC for multi-carrier and multi-standard GSM, W-CDMA and LTE base stations in the 2500 MHz to 2700 MHz frequency range.
Parametrics
| Symbol | Parameter | Conditions | Min | Typ/Nom | Max | Unit |
|---|---|---|---|---|---|---|
| frange | frequency range | 2500 | 2700 | MHz | ||
| PL(3dB) | nominal output power at 3 dB gain compression | 20 | W | |||
| Test signal: 1-c W-CDMA | ||||||
| VDS | drain-source voltage | 2620 MHz [0] | 28 | V | ||
| Gp | power gain | 2620 MHz [0] | 27.3 | dB | ||
| ηD | drain efficiency | 2620 MHz [0] | 46.1 | % | ||
| PL(AV) | average output power | 2620 MHz [0] | 3.8 | W | ||
| ACPR5M | adjacent channel power ratio (5 MHz) | 2620 MHz [0] | -33.3 | dBc | ||
Package / Packing
All type numbers in the table below are discontinued.
| Type number | Package | Outline version | Reflow-/Wave soldering |
Packing | Product status | Marking |
Orderable part number, (Ordering code (12NC)) |
|---|---|---|---|---|---|---|---|
| BLM9D2527-20AB | PQFN20 (SOT1462-1) |
sot1462-1_po | Reel 7" Q1/T1 in Drypack | Withdrawn | Standard Marking |
BLM9D2527-20ABZ (9349 600 74515) |
|
| T&R Drypack | Withdrawn | Standard Marking |
BLM9D2527-20ABX (9349 600 74525) |
Discontinuation information
| Type number | Ordering code (12NC) | Last-time buy date | Last-time delivery date | Replacement product | DN Notice | Status | Comments |
|---|---|---|---|---|---|---|---|
| BLM9D2527-20AB | 9349 600 74515 | 2021-12-31 | 2022-09-30 | BLM9D2327-26B | 202103001DN | Full Withdrawal | |
| BLM9D2527-20AB | 9349 600 74525 | 2021-12-31 | 2022-09-30 | BLM9D2327-26B | 202103001DN | Full Withdrawal |

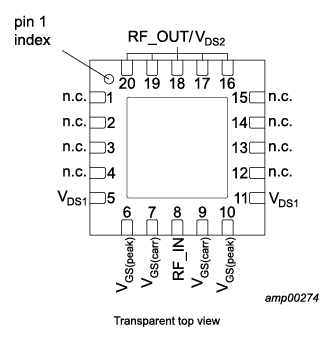

Pinning info
| Pin | Symbol | Description | Simplified outline | Graphic symbol |
|---|---|---|---|---|
| 1 | n.c. | not connected |
|
|
| 2 | n.c. | not connected | ||
| 3 | n.c. | not connected | ||
| 4 | n.c. | not connected | ||
| 5 | VDS1 | drain-source voltage of driver stages | ||
| 6 | VGS(peak) | gate-source voltage of peaking | ||
| 7 | VGS(carr) | gate-source voltage of carrier | ||
| 8 | RF_IN | RF input | ||
| 9 | VGS(carr) | gate-source voltage of carrier | ||
| 10 | VGS(peak) | gate-source voltage of peaking | ||
| 11 | VDS1 | drain-source voltage of driver stages | ||
| 12 | n.c. | not connected | ||
| 13 | n.c. | not connected | ||
| 14 | n.c. | not connected | ||
| 15 | n.c. | not connected | ||
| 16 | RF_OUT/VDS2 | RF output / drain-source voltage of final stages | ||
| 17 | RF_OUT/VDS2 | RF output / drain-source voltage of final stages | ||
| 18 | RF_OUT/VDS2 | RF output / drain-source voltage of final stages | ||
| 19 | RF_OUT/VDS2 | RF output / drain-source voltage of final stages | ||
| 20 | RF_OUT/VDS2 | RF output / drain-source voltage of final stages | ||
| flange | GND | RF ground |
Documentation
| Title | Type | Date | |
|---|---|---|---|
| Mounting and soldering of RF transistors in overmolded plastic packages | Application note | 2023-07-24 | |
| LDMOS 2-stage integrated Doherty MMIC | Data sheet | 2017-06-29 | |
| Mounting and soldering of RF transistors in air cavity packages | Application note | 2024-05-23 | |
| Packages for RF power transistors | Leaflet | 2024-10-25 | |
| LDMOS ruggedness reliability | Other type | 2017-03-28 | |
| Efficiency improvement of LDMOS transistors for base stations: towards the theoretical limit | Other type | 2017-05-02 | |
| LDMOS technology for RF power amplifiers | Other type | 2017-05-03 | |
| RF power solutions for Wireless Infrastructure | Brochure | 2024-10-08 |
Design support
| Title | Type | Date | |
|---|---|---|---|
| Printed-Circuit Board (PCB) BLM9D2527-20AB (Data sheet) | Design support | 2017-07-05 |
